1-Piece Ball Valves
Industrial valves
Ball
valves.
Soft seated & metal-to-metal seated.
Industrial Ball Valves for reliable flow control across demanding process applications.
Reliable flow control
Fast operation.
Dependable shut-off.

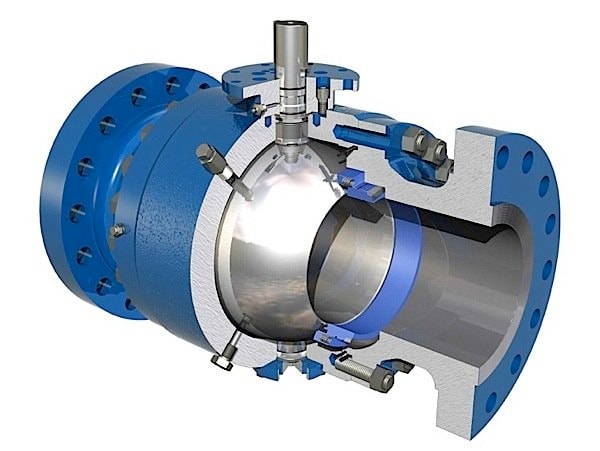

Ball Valves are quarter-turn valves designed for reliable and efficient isolation and flow control of liquids, gases and other compatible process media. With a rotating ball and precision-machined flow passage, ball valves provide quick operation, compact construction and dependable shut-off performance.
SGM Corporations supplies industrial Ball Valves in various configurations, sizes, materials, pressure ratings and end connections to meet the requirements of process industries and industrial piping systems.
Configurations for your application
Ball valve range.
2-Piece Ball Valves
3-Piece Ball Valves
Flanged End Ball Valves
Screwed / Threaded End Ball Valves
Floating Ball Valves
Trunnion-Mounted Ball Valves
3-Way Ball Valves
Full-Port and Reduced-Port Ball Valves
Pneumatic Actuated Ball Valves
Electric Actuated Ball Valves
Jacketed Ball Valves
High-Pressure Ball Valves
Availability and configuration depend on the application and technical specification.
Designed for industrial service
Key features.
Quick 90° quarter-turn operation
Reliable shut-off performance
Compact and robust construction
Suitable for a wide range of industrial applications
Available in different body and trim materials
Various pressure classes and sizes
Flanged, threaded and welded end connections
Manual or actuator-operated options
Suitable for liquid and gaseous media, subject to material and service compatibility
Product details
Specifications.
| Size | 2"–36" (50 NB–900 NB) |
|---|---|
| Pressure class | 150–2500 |
| Construction | Single / Two / Three Pieces |
| Body and trim materials | CS / SS / Alloy / DSS / MOS |
| Ball configuration | Trunnion / Floating / Full and Reduced Bore |
| Seat design | Soft seated / Metal-to-metal seated |
| Design standards | API 6D / ASME B16.34 / BS 5351 / BS 17292 |
| Face-to-face | ASME B16.10 / API 6D |
| End connections | Butt-weld / Flanged |
| End-to-flange | ASME B16.5 / DIN / BS / IS |
| Butt-weld ends | ASME B16.25 |
| Testing | API 598 / BS 6755 / ISO 12266 |
| Fire-safe design | API 607 / API 6FA |
| Special service | Anti-static device / Blow-out-proof stem / NACE MR-01-75 / 0103 |
| Actuation | Hand lever / Gear box / Pneumatic / Electric / Hydraulic |
Confirm the applicable standards, materials and ratings against the required service and technical specification.
Applications
For a range of
industrial systems.
Industrial Ball Valves are widely used for isolation and flow control in:
- Chemical & Petrochemical Industries
- Sugar Industries
- Power Plants
- Steel & Cement Industries
- Oil & Gas
- Water & Wastewater Treatment
- Pharmaceutical Industries
- Food & Beverage Processing
- Process Industries
- Compressed Air Systems
- Steam and Utility Lines
- General Industrial Piping
The correct ball valve construction, material, pressure rating and seat design should be selected according to the operating pressure, temperature and process medium.
Ball valve range
Built for reliable
flow control.
Talk to our team
Discuss your
requirement.
Share your process conditions and operating requirements to discuss a suitable Ball Valve configuration.
