Wedge Gate Valves
Industrial valves
Gate
valves.
Reliable industrial gate valves for flow isolation.
Designed for dependable on/off service in process and pipeline applications.
Reliable flow isolation
Reliable isolation.
Industrial service.
SGM Corporations supplies industrial Gate Valves designed for reliable and efficient on/off flow isolation in process and pipeline applications. Gate valves are suitable where the valve is generally required to operate in a fully open or fully closed position, with configurations available to suit application and operating requirements.
How it works
Gate valve
working principle.
A gate valve operates by moving a gate vertically into or out of the fluid flow path. When fully open, the gate is lifted clear of the flow passage, providing a substantially unobstructed path and low pressure loss. When closed, the gate moves against the seats to isolate the pipeline.
Gate valves are primarily intended for isolation service rather than continuous throttling or flow regulation.
Configurations for your application
Types of gate valves.
Solid Wedge Gate Valves
Flexible Wedge Gate Valves
Split Wedge / Double Disc Gate Valves
Parallel Slide Gate Valves
Slab Gate Valves

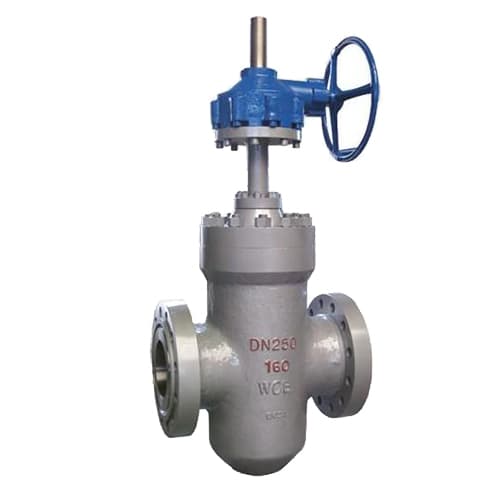

Through-Conduit Gate Valves
Rising Stem Gate Valves
Non-Rising Stem Gate Valves
Pressure Seal Gate Valves
Forged Gate Valves
Cast Steel Gate Valves
The appropriate configuration depends on pressure, temperature, fluid characteristics, installation conditions and operating requirements.
Designed for industrial service
Key features.
Reliable shut-off and isolation
Straight-through flow path when fully open
Low pressure drop in the fully open position
Available in rising and non-rising stem designs
Multiple body and trim material options
Suitable for a wide range of industrial applications
Handwheel, gearbox or actuated operation as required
Available in different pressure classes and end connections
Product details
Specifications.
| Size | 1/2"-36" (15 NB-900 NB) |
|---|---|
| Pressure class | 150-2500 |
| Body materials | CS / CI / SS / Alloys / Monel / Hastelloy / fabricated MOC |
| Wedge / disc | Solid / flexible wedge / parallel / double disc |
| Design standards | ASME B16.34 / BS 5352 / API 600 / API 603 / API 602 / IS 14346 |
| Face-to-face | ASME B16.10 / DIN |
| End connections | Socket weld / butt weld / flanged / RTJ |
| Butt-weld ends | ASME B16.25 |
| Testing | API 598 |
| Seating | Metal-to-metal / metal-to-soft seat |
| Actuation | Manual / gear box / pneumatic / electrical actuator |
| Special options | Bellows sealed / cryogenic / high temperature / NACE MR-01-75 |
| End flange | ASME B16.5 / B16.47 / DIN / BS / IS / JIS |
Confirm applicable standards, materials, ratings and options against the required service and technical specification.
Applications
For industrial
flow isolation.
Gate valves are widely used for pipeline and process isolation across industries such as:
- Sugar Industries
- Power Plants
- Steel Industries
- Cement Plants
- Oil & Gas
- Petrochemical Industries
- Chemical Industries
- Water & Wastewater
- Boiler & Steam Systems
- General Process Industries
Gate valve range
Isolation for
demanding systems.
Talk to our team
Discuss your
requirement.
Contact us for Gate Valve enquiries, technical specifications and quotations. Share your service and operating requirements to discuss a suitable configuration.
Discuss your requirement →
