Precise flow regulation and throttling
Industrial valves
Globe
valves.
Precision flow control and reliable industrial shut-off.
Built for controlled adjustment of flow across demanding process and utility applications.
Precision flow control
Accurate regulation.
Reliable shut-off.
Globe Valves are industrial flow control valves designed for precise throttling, flow regulation and reliable shut-off in piping systems. Their linear-motion design allows controlled adjustment of fluid flow, making them suitable for applications where accurate flow regulation is required.
SGM Corporations supplies industrial Globe Valves for demanding applications across process industries, including sugar, power, steel, cement, chemical and general industrial plants.
Industrial service
Designed to
throttle and regulate.
Globe valves are particularly suitable where flow needs to be regulated or throttled rather than simply switched fully ON or OFF. They are commonly used for steam, water, air, gas, oil and process fluids, depending on the valve material, trim and operating conditions.
Construction and configuration can be selected according to the required pressure, temperature, media, size and service conditions.
Designed for industrial service
Key features.
Reliable shut-off performance
Robust industrial construction
Suitable for high-pressure and high-temperature services
Available in different body and trim materials
Multiple pressure classes and size options
Flanged, screwed or welded end connections as required
Manual, gear-operated or actuated configurations
Suitable for steam and process applications
Configurations for your application
Globe valve types.

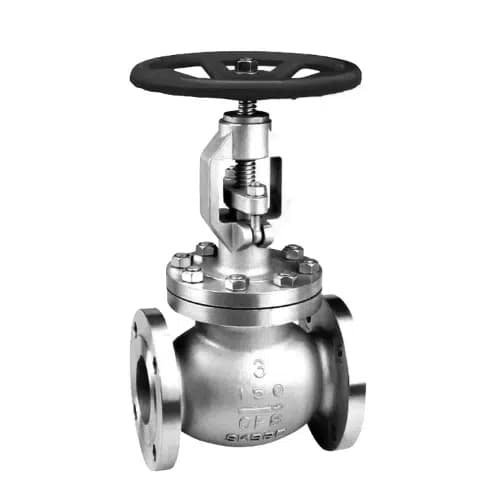

Straight Pattern Globe Valve
Angle Globe Valve
Y-Pattern Globe Valve

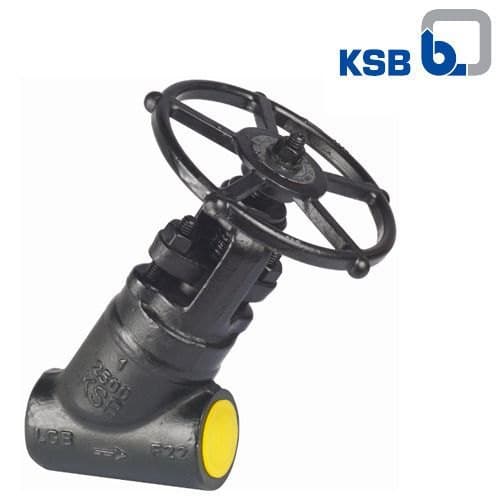

Forged Steel Globe Valve
Bellows Seal Globe Valve
Pressure Seal Globe Valve
IBR & Non-IBR Globe Valves
Manual and Actuated Globe Valves
Product details
Typical specifications.
| Size | 1/2"-20" (15 NB-500 NB) |
|---|---|
| Pressure class | 150-2500 |
| Body materials | CS / CI / SS / Alloys / Monel / Hastelloys |
| Plug | Parabolic, regulating, throttle and guide type |
| Patterns | Straight "T", "Y" and angle type |
| End connections | Butt weld / flanged end / RTJ / screwed as required |
| Butt-weld ends | ASME B16.25 |
| Design | ASME B16.34 / BS 1873 |
| Face-to-face | ASME B16.10 / DIN |
| Testing | API 598 / BS 6755 |
| Seating | Metal-to-metal / metal-to-soft seat |
| Special options | Bellows sealed / cryogenic / high temperature / bypass |
| Actuation | Manual / gear box / pneumatic / electrical actuator |
Options and standards depend on valve type, size, rating and service. Confirm the final specification against operating requirements.

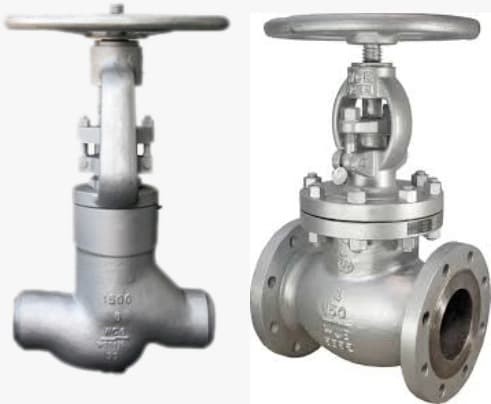

Globe valve range
Built for precise
flow regulation.
Applications
Precise control
across industries.
Globe Valves are widely used in:
- Sugar Industries
- Power Plants
- Steam & Boiler Systems
- Steel Industries
- Cement Plants
- Chemical & Process Industries
- Oil & Gas Applications
- Water & Utility Systems
- General Industrial Piping
Talk to our team
Discuss your
requirement.
Contact us for Globe Valve enquiries, technical specifications and quotations. Share your media, pressure, temperature and operating requirements to discuss a suitable configuration.
